Luna JS SDK Guide

The Luna JavaScript SDK is a free tool that streamlines the process of readying a JS playable for Creative Suite.

Setup​

1. Include the Script​

First you will need to add it as a script to your html file as: src="https://code.lunalabs.io/js-sdk/v0.0.10/index.js".

Make sure to add the Luna SDK before any other scripts in your html file.

You can also change the version number in the URL to match the latest version of the JS SDK available.

Latest Version: v0.0.10

2. Implement setStartGame (If you don't have a similar global function)​

Next you will need to make sure you have a global start game function in your game:

window.startGame = () => {
  // your game initialization here
};

3. (Optional) Add dynamic fields​

Example:

Luna.setFields({
  fieldExample: {
    int: 2, // acceptable type names are: int, float, string, boolean, color, vector2, vector3, vector4, enum, "float[]", "int[]", "string[]", "boolean[]", "color[]", "vector2[]", "vector3[]", "vector4[]", "enum[]"
    title: 'Field Example', // title of field on Creative Suite
    section: 'Settings', // (Optional) The group in which to show on Creative Suite
    options: ['Hello', 'Hi'], // (Optional) Used only by enums to set the different values it can have
    min: 0, // (Optional) used for numbers to set the min value on Creative Suite
    max: 10, // (Optional) used for numbers to set the max value on Creative Suite
    step: 2, // (Optional) used for numbers to set the increment value on Creative Suite
    minLength: 2, // (Optional) used for arrays to set the min length of the array on Creative Suite
    maxLength: 2 // (Optional) used for arrays to set the max length of the array on Creative Suite
  },
  secondExample: { enum: 2, options: ['Hello', 'Hi'] },
  thirdExample: { 'boolean[]': [true, false] },
  forthExample: { color: 'rgb(255,255,255)' }
});

The value of a vector2, vector3 or vector4 needs to be an array with the x,y,z,w values as elements.

Enum values can either be the string value or the index number.

Color can be either an array with the following formats: [r,g,b,a], rgba(255,255,255,0.1), rgba(255,255,255).

Alternatively you could use a hex code: #ff00ff55, or one without an alpha value: #ff00ff.

You can then use these fields in your game by calling them, for example:

Luna.getField('fieldExample', 2);
Luna.getField('forthExample', '#ff00ff', 'hex');

The 1st parameter of the function is the field name, the 2nd is the default value, and the 3rd is the format.

For now we only support formatting colors, so the following formats are acceptable: "rgba" | "rgb" | "hex" | "hex6"

4. (Optional) Add Custom Events​

You can add custom events by using window.pi.logCustomEvent.

E.g.:

window.pi.logCustomEvent('LevelStarted');
window.pi.logCustomEvent('EnemyDestroyed', 4);

5. (Optional depending on Network) Call Luna.Unity.LifeCycle.GameEnded()​

Some Ad Networks require to know when a game has ended, so at the end of the game you need to call: Luna.Unity.LifeCycle.GameEnded().

6. Implement Luna.Unity.Playable.InstallFullGame()​

Luna.Unity.Playable.InstallFullGame() needs to be called at the end of the gameplay cycle.

You can also:

  • Set the title of the game on Creative Suite by calling: Luna.setTitle("My Game");
  • Set the icon of the game by calling: Luna.setIcon("./my_logo.png"); (You can also use a link to an image online)

7. Download your PG ready playable​

Once all the necessary previous steps are done, you can click on the Luna button located in the bottom right of your game. (Circled in the image below)

images-medium

This will export a zip for you that you can upload to Creative Suite.

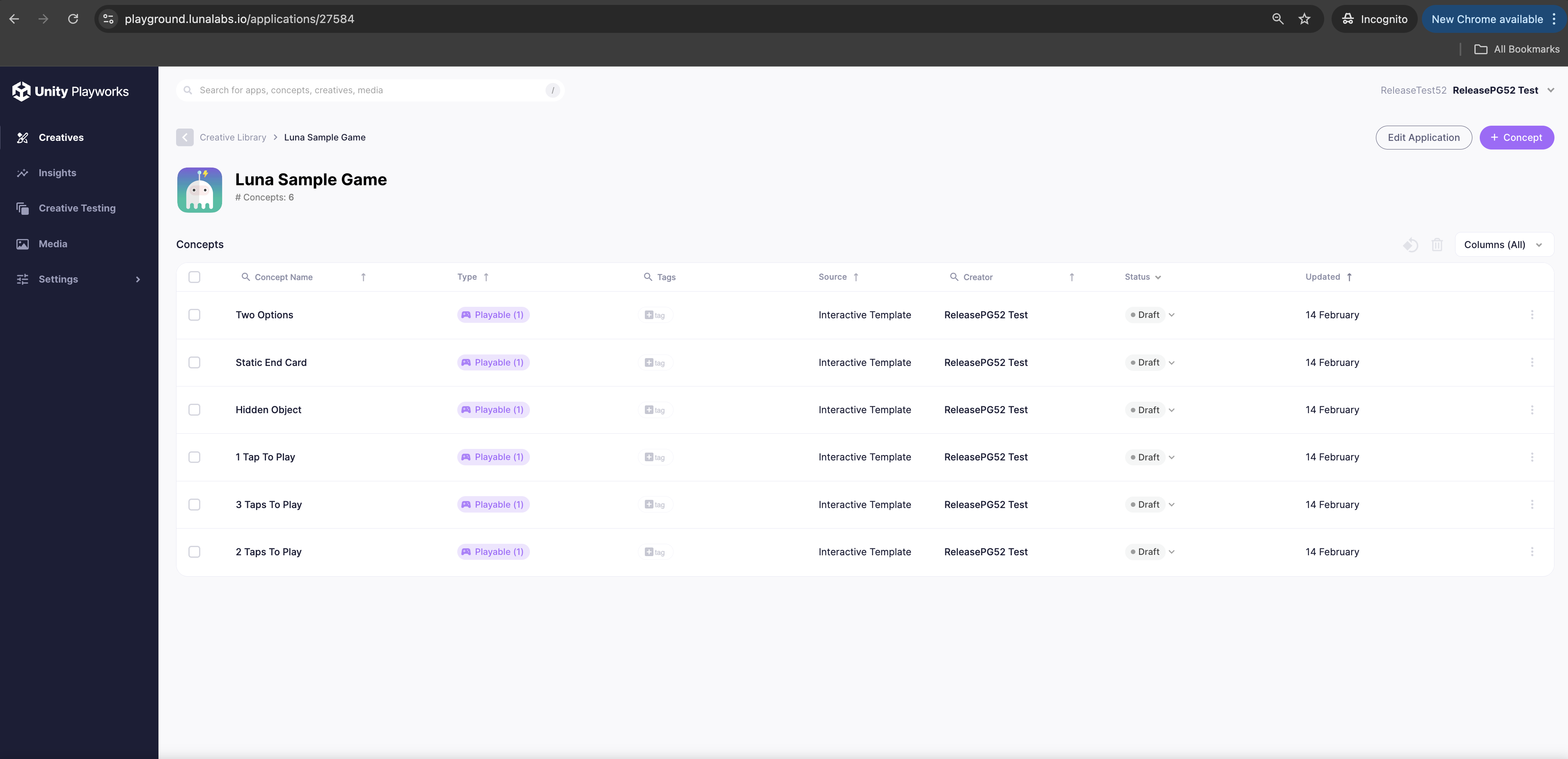

To upload:

  1. Login to Creative Suite
  2. Navigate to the Playable Apps section under the Playable dropdown menu
  3. Click 'Browse' and select your zip (or drag and drop it in)

images-medium

Asset Exportation​

  1. Playcanvas (Latest version): The Luna JS SDK patches most of the Playcanvas handlers. Meaning you should be able to load your assets normally, and when exporting the SDK will grab and include your assets inside the zip.
  2. Pixi (Latest version): The Luna JS SDK patches the Pixi loader and PIXI.Texture.from(). Meaning you should be able to load your assets normally, and when exporting the SDK will grab and include your assets inside the zip.
  3. ThreeJS (Latest version): The Luna JS SDK patches most of the Playcanvas loaders. Meaning you should be able to load your assets normally, and when exporting the SDK will grab and include your assets inside the zip.
  4. Custom loader At the moment there is only a basic loader implementation so you can do:
Luna.addAssets(['./data/img.png', './jsons/data.json']);

To get the asset you can do:

const asset = await Luna.geAsset('./data/img.png');
const arrayBuffer = await asset.arrayBuffer(); // to get the asset as an array buffer
const blob = await asset.blob(); // to get the asset as a blob
const text = await asset.text(); // to get the asset as text
const json = await asset.json(); // to get the asset as  a json

Alternatively you can cache all your assets as base 64 inside your js code, and get them from there.
